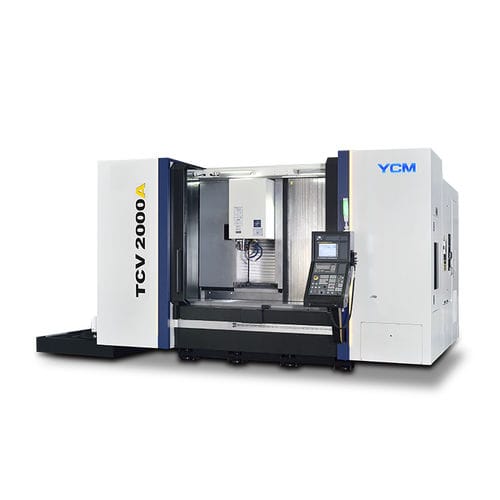

3-axis CNC machining center TCV2000Averticaltraveling-columnBBT40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- traveling-column
- Spindle mount
- BBT40
- Applications
- for large workpieces
- Other characteristics
- high-performance, high-precision
- X travel
2,000 mm
(78.74 in)- Y travel
520 mm
(20.47 in)- Z travel
540 mm
(21.26 in)- Rotational speed
12,000 rpm, 15,000 rpm
(75,398 rad.min-1, 94,248 rad.min-1)- Power
22 kW
(29.91 hp)- Work feed X-axis
40,000 mm/min
(26 in/s)- Work feed Y-axis
40,000 mm/min
(26 in/s)- Work feed Z-axis
40,000 mm/min
(26 in/s)- Table load capacity
2,000 kg
(4,409 lb)- Tool weight (max)
6 kg
(13.2 lb)- Weight
13,000 kg
(28,660.09 lb)
Description
Reinforced Body Structure
Wide span design of machine structure.
Large delta machine column and base ensure highest stability.
With FEM analysis.
With stepped design and 6 slider blocks on X-axis ensure the ultra reliable axial movement.
Large working area is ideal for large and long workpieces machining.
With the installation of dividing wall in the working area, both long and complex parts can be manufactured in the same machine.
High Efficiency
Circulated cooling system design on X-axis ensures stable temperature and optimal accuracy.
No counter weight design on Z-axis that lowers vibration while machining and greatly improves surface roughness.
Extra guideway blocks support ATC magazine to ensure smooth and stable movement.
