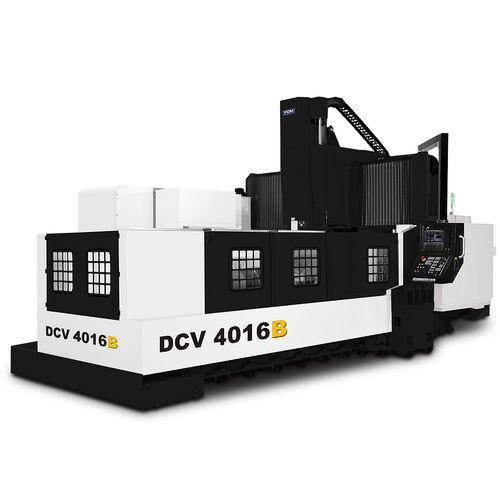

3-axis CNC machining center DCV4016Bverticaldouble-column40 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Number of tool stations
- 40 tools, 60 tools, 120 tools
- Associated functions
- cutting
- Other characteristics
- high-rigidity, direct-drive
- X travel
4,065 mm
(160.04 in)- Y travel
1,600 mm
(62.99 in)- Z travel
762 mm, 1,016 mm
(30 in, 40 in)- Rotational speed
4,500 rpm, 6,000 rpm, 10,000 rpm
(28,274 rad.min-1, 37,699 rad.min-1, 62,832 rad.min-1)- Power
25 kW, 45 kW
(33.99 hp, 61.18 hp)- Work feed X-axis
15,000 mm/min
(10 in/s)- Work feed Y-axis
15,000 mm/min
(10 in/s)- Work feed Z-axis
15,000 mm/min
(10 in/s)- Table load capacity
12,000 kg
(26,455 lb)- Tool weight (max)
20 kg
(44.1 lb)- Weight
35,000 kg
(77,161.79 lb)
Description
Superb Body Structure
One-piece Base
Rigid proportion of the headstock
With Hi-lo Gear Transmission
The spindle incorporates roller type spindle bearings for extremely high cutting rigidity.
The 2-step gear transmission provides 88.87kgf-m torque output at 241rpm ideal for machining hard material.
High Rigidity Guideways
X-axis is directly driven by gearbox offering smooth axial response and high torque
Roller type guideways on X/Y axis
Y-axis is supported by 3 roller type guideways and 6 slider blocks to offer ultimate cutting rigidity
Horizontal and vertical support of the headstock
Hardened and ground box guideway on Z-axis enlarges the contact interface for high machining stability
