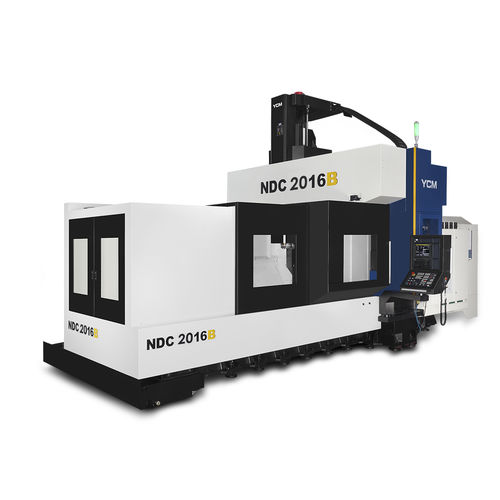

3-axis CNC machining center NDC2016Bverticaldouble-column40 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Number of tool stations
- 40 tools, 60 tools, 32 tools, 120 tools
- Other characteristics
- high-precision, high-rigidity, with linear motor
- X travel
2,200 mm
(86.61 in)- Y travel
1,600 mm
(62.99 in)- Z travel
762 mm, 1,016 mm
(30 in, 40 in)- Rotational speed
6,000 rpm, 10,000 rpm
(37,699 rad.min-1, 62,832 rad.min-1)- Power
35 kW, 45 kW
(47.59 hp, 61.18 hp)- Work feed X-axis
20,000 mm/min
(13 in/s)- Work feed Y-axis
20,000 mm/min
(13 in/s)- Work feed Z-axis
15,000 mm/min
(10 in/s)- Table load capacity
8,000 kg
(17,637 lb)- Tool weight (max)
20 kg
(44.1 lb)- Weight
22,000 kg
(48,501.7 lb)
Description
A-ribbed base structure with multiple supporting points provides X-axis with the best straightness
Work table fully supported by base provides perfect dynamic accuracy
One piece high rigidity column offers low deformation, providing Y-axis with the best straightness
Wide span saddle provides both horizontal and vertical support which decentralizes the load caused from head weight and spindle during machining
High damping boxway on Z-axis absorbs vibration, prolongs tool life and enhances surface precision
Dual chip augers with conveyor offer efficient chip removal Simple plate metal design reduces chip accumulationn
