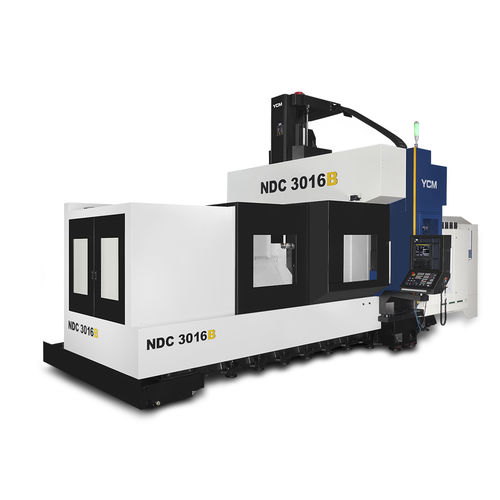

3-axis CNC machining center NDC3016B
verticaldouble-column40 tools

3-axis CNC machining center - NDC3016B - YCM (Yeong Chin) - vertical / double-column / 40 tools
3-axis CNC machining center - NDC3016B - YCM (Yeong Chin) - vertical / double-column / 40 tools
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
double-column
Number of tool stations
40 tools, 60 tools, 32 tools, 120 tools
Other characteristics
high-precision, high-rigidity, high-power, with linear motor
X travel

3,200 mm
(125.98 in)

Y travel

1,600 mm
(62.99 in)

Z travel

762 mm, 1,016 mm
(30 in, 40 in)

Rotational speed

6,000 rpm, 10,000 rpm
(37,699 rad.min-1, 62,832 rad.min-1)

Power

35 kW, 45 kW
(47.59 hp, 61.18 hp)

Work feed X-axis

20,000 mm/min
(13 in/s)

Work feed Y-axis

20,000 mm/min
(13 in/s)

Work feed Z-axis

15,000 mm/min
(10 in/s)

Table load capacity

10,000 kg
(22,046 lb)

Tool weight (max)

20 kg
(44.1 lb)

Weight

26,000 kg
(57,320.19 lb)

Description

A-ribbed base structure with multiple supporting points provides X-axis with the best straightness Work table fully supported by base provides perfect dynamic accuracy One piece high rigidity column offers low deformation, providing Y-axis with the best straightness Wide span saddle provides both horizontal and vertical support which decentralizes the load caused from head weight and spindle during machining High damping boxway on Z-axis absorbs vibration, prolongs tool life and enhances surface precision Dual chip augers with conveyor offer efficient chip removal Simple plate metal design reduces chip accumulationn
