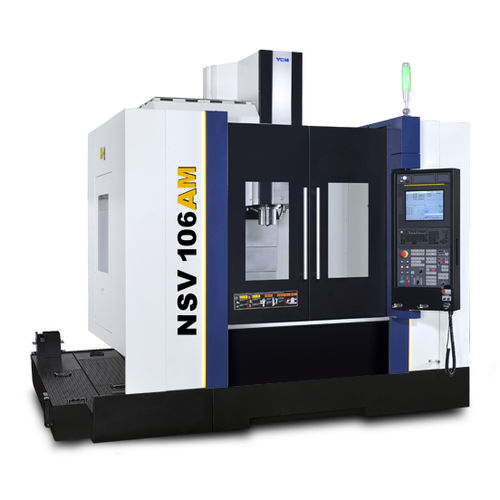

3-axis CNC machining center NSV106AMverticalcolumn typeBBT40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- column type
- Spindle mount
- BBT40
- Number of tool stations
- 24 tools, 48 tools
- Associated functions
- tapping, cutting, drilling
- Applications
- for the automobile industry, for the aeronautical industry, for molds, for matrices
- Other characteristics
- high-speed, high-performance, high-precision, high-rigidity
- X travel
1,020 mm
(40.16 in)- Y travel
600 mm
(23.62 in)- Z travel
600 mm
(23.62 in)- Rotational speed
12,000 rpm, 15,000 rpm
(75,398 rad.min-1, 94,248 rad.min-1)- Power
18.5 kW
(25.15 hp)- Work feed X-axis
24,000 mm/min
(16 in/s)- Work feed Y-axis
24,000 mm/min
(16 in/s)- Work feed Z-axis
16,000 mm/min
(10 in/s)- Table load capacity
700 kg
(1,543 lb)- Tool weight (max)
6 kg
(13.2 lb)- Tool-changing time
1.8 s
- Weight
7,000 kg
(15,432.36 lb)
Description
One-piece motor housing
Large delta machine column and base ensure the highest stability during high speed movement.
Advanced FEM analysis strengthens the structure while reduces the weight to provide the best cutting rigidity.
X-axis equipped with 6 slide blocks increases rigidity by 50%, compared to previous model.
Y-axis guideway span with optimal ratio
Spindle cooling unit decrease thermal deformation on spindle headstock.
Micro oil-air lubrication system minimizes thermal deformation and prolongs spindle life that are well-suited for die & mold industry.
Efficient Chip Removal System
Equipped with triple-chip augers as a standard.
Dual-chip augers as an option.
Ultra-high controllability and stability.
