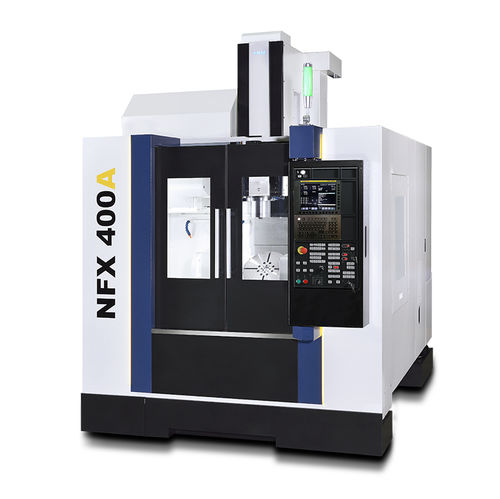

5-axis CNC machining center NFX400Averticalcolumn typewith rotary table
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- column type, with rotary table
- Spindle mount
- BBT40
- Number of tool stations
- 40 tools, 60 tools, 120 tools, 20 tools
- Associated functions
- cutting
- Other characteristics
- high-speed, high-productivity, high-precision, high-rigidity, high-power
- X travel
650 mm
(25.59 in)- Y travel
520 mm
(20.47 in)- Z travel
480 mm
(18.9 in)- Rotational speed
12,000 rpm, 15,000 rpm
(75,398 rad.min-1, 94,248 rad.min-1)- Power
18.5 kW, 22 kW
(25.15 hp, 29.91 hp)- Work feed X-axis
36,000 mm/min
(24 in/s)- Work feed Y-axis
36,000 mm/min
(24 in/s)- Work feed Z-axis
36,000 mm/min
(24 in/s)- Table load capacity
200 kg
(441 lb)- Tool weight (max)
6 kg
(13.2 lb)- Weight
6,200 kg
(13,668.66 lb)
Description
High quality and rugged MEEHANITE® casting maintains optimum accuracy.
High Accuracy Axial Movement
Linear guideways adopted for fast and smooth axial movement.
Pre-tensioned ball screws with direct drive motors achieve high torque and low backlash.
150˚(+30˚/ -120˚) A-axis tilting angle increases the ability of machining.
ø350 mm (ø13.78") table size with ø50 mm (ø1.97") table-through hole design.
Max. Workpiece Dimensions ø400 x 310 mm (ø15.75" x 12.2").
6 Piping preparation for fixture (Air pressure x 2 + Hydraulic x 4).
Tool Magazine
ATC door design is standard that prevents coolant and chips from entering tool magazine.
YCM In-house IDD PLUS Spindle
Cooling system design on spindle motor seat, quill, and bearing offers most reliable machining capability.
Micro Oil-air Lubrication System (opt.)
Reliable Helical Disc Spring
Simultaneous Taper & Flange Contact Design
