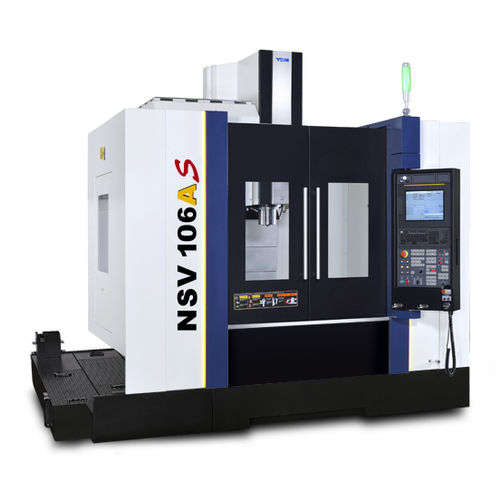

3-axis CNC machining center NSV106ASverticalcolumn typeBBT40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- column type
- Spindle mount
- BBT40
- Number of tool stations
- 48 tools
- Associated functions
- tapping, cutting, drilling
- Other characteristics
- high-speed, high-precision, high-rigidity
- X travel
1,020 mm
(40.16 in)- Y travel
600 mm
(23.62 in)- Z travel
600 mm
(23.62 in)- Rotational speed
15,000 rpm
(94,248 rad.min-1)- Power
30 kW
(40.79 hp)- Work feed X-axis
48,000 mm/min
(31 in/s)- Work feed Y-axis
48,000 mm/min
(31 in/s)- Work feed Z-axis
48,000 mm/min
(31 in/s)- Table load capacity
700 kg, 1,000 kg
(1,543 lb, 2,205 lb)- Tool weight (max)
6 kg
(13.2 lb)- Tool-changing time
1.8 s
- Weight
7,000 kg
(15,432.36 lb)
Description
One-piece motor housing
Large delta machine column and base ensure the highest stability during high speed movement.
X-axis equipped with 6 slide blocks increases rigidity by 50%, compared to previous model.
Y-axis guideway span with optimal ratio
Spindle cooling unit decrease thermal deformation on spindle headstock.
Micro oil-air lubrication system minimizes thermal deformation and prolongs spindle life.
Reliable Automatic Tool Change
30T Disk type as a standard
Standard ATC door
Efficient Chip Removal System
Equipped with dual-chip augers and chain type chip conveyor definitely help maximize the efficiency of chip removal.
