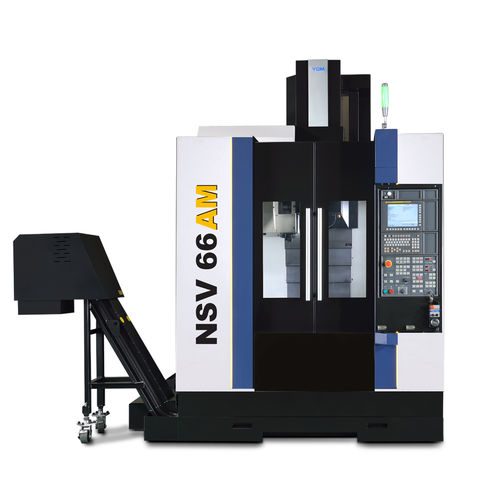

3-axis CNC machining center NSV66AMverticalcolumn typefor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- column type
- Machined material
- for aluminum
- Spindle mount
- BBT40
- Associated functions
- cutting
- Other characteristics
- high-performance, high-rigidity, direct-drive, with automatic tool changer
- X travel
660 mm
(25.98 in)- Y travel
510 mm
(20.08 in)- Z travel
560 mm
(22.05 in)- Rotational speed
12,000 rpm, 15,000 rpm, 20,000 rpm
(75,398 rad.min-1, 94,248 rad.min-1, 125,664 rad.min-1)- Power
22 kW
(29.91 hp)- Work feed X-axis
24,000 mm/min
(16 in/s)- Work feed Y-axis
24,000 mm/min
(16 in/s)- Work feed Z-axis
24,000 mm/min
(16 in/s)- Table load capacity
500 kg
(1,102 lb)- Tool weight (max)
6 kg
(13.2 lb)- Weight
6,500 kg
(14,330.05 lb)
Description
Result in excellent surface finish while maximizing both spindle and tool life under hard milling conditions.
Built-in Motorized Spindle (Opt.)
Superb spindle cooling system with YCM patent provides minimum spindle vibration.
Rear bearing floating design
Micro oil-air lubrication system
BBT40 double contact spindle taper
Wide distance between guideways
Advanced design with reinforced body structure through FEM analysis, the NSV series offers superb cutting performance and reduced vibration to meet the highest machining demand.
Minimizes the vibration during tool change
Tool magazine capacity: 30T
Standard ATC door prevents coolant and chips from entering tool magazine.
