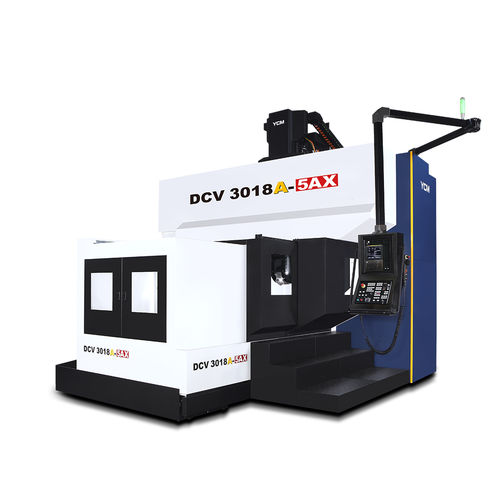

5-axis CNC machining center DCV3018A-5AX

verticaldouble-columnHSK A-63

Reinforced Body Structure One-piece Base Internal double A type ribbed bed design through FEM analysis offers full support for table. 1,800 mm distance between columns increases the stability of machine Extra Rigidity Guideways X-axis is gearbox driven. High Payload Table The work table is precisely ground before assembled to ensure DCV series excellent machining results. 10 tons maximum table machining loading. B/C-axis Head DD motor drive, no backlash. B/C axis rotary speed 100 rev/min. C-axis includes three roller bearings to increase rigidity and accuracy. B-axis high rigidity and high accuracy cross roller bearing. Heidenhain accuracy encoder included as standard. Pneumatic positioning clamping equipment. Over travel protection design. B-axis anti-drop function at power outage.
