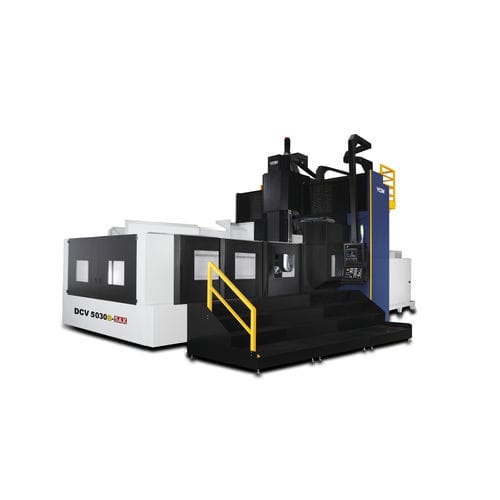

5-axis CNC machining center DCV5030B-5AX

verticaldouble-columnHSK-100-A

5AX ROBO I Achieves Perfect 3D Contouring Operations The main structure is made of superior nodular graphite cast iron. Coolant through spindle system: 20 bar (opt.) Superb spindle coolant system. HEIDENHAIN encoder enhances the cutting accuracy. Disc type hydraulic clamping device. Rotary joint design prevents the damage on the hydraulic tubes caused during rotation. Double direction roller bearings for perfect cutting rigidity. Superb Body Structure & X/Y/Z Guideways Design Massive MEEHANITE® casting through FEM analysis offers exceptional damping capacity. Direct drive gearbox design on X/Y/Z axis offers smooth axial response, high torque, and low backlash. Extra wide column base with boots design. Equipped with roller type guideways and numerous slider blocks for great load capacity and cutting rigidity. HEIDENHAIN Control Program memory hard disk with 21 GB. Tool center point management [TCPM] Dynamic collision monitoring [DCM] DXF converter (opt.) Unique Isolated Direct Drive Design Unique IDD design offers low spindle vibration and optimal heat isolation that results in excellent accuracy after longterm operation.
