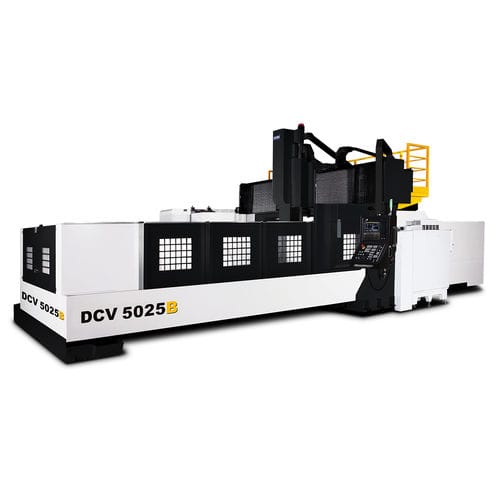

3-axis CNC machining center DCV5025Bverticaldouble-column40 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Number of tool stations
- 40 tools, 60 tools, 120 tools
- Associated functions
- cutting
- Other characteristics
- high-rigidity, direct-drive
- X travel
5,200 mm
(204.72 in)- Y travel
2,500 mm
(98.43 in)- Z travel
762 mm, 1,016 mm
(30 in, 40 in)- Rotational speed
4,500 rpm, 6,000 rpm, 10,000 rpm
(28,274 rad.min-1, 37,699 rad.min-1, 62,832 rad.min-1)- Power
25 kW, 45 kW
(33.99 hp, 61.18 hp)- Work feed X-axis
12,000 mm/min
(8 in/s)- Work feed Y-axis
15,000 mm/min
(10 in/s)- Work feed Z-axis
15,000 mm/min
(10 in/s)- Table load capacity
23,000 kg
(50,706 lb)- Tool weight (max)
20 kg
(44.1 lb)- Weight
54,000 kg
(119,049.62 lb)
Description
Superb Body Structure
Extra wide column base with boots design prevents the headstock from leaning forward.
Internal ribs structure design through FEM analysis delivers high rigidity and stability.
In the picture, A and B are designed by competitors and YCM respectively.
X-axis is equipped with 3 roller type guideways and numerous slider blocks for great load capacity of 18 slider blocks.
3 roller type guideways on Y-axis strongly support the headstock and saddle.
The spindle incorporates roller type spindle bearings for extremely high cutting rigidity.
The 2-step gear transmission provides 88.87 kgf-m torque output at 241 rpm ideal for machining hard material.
