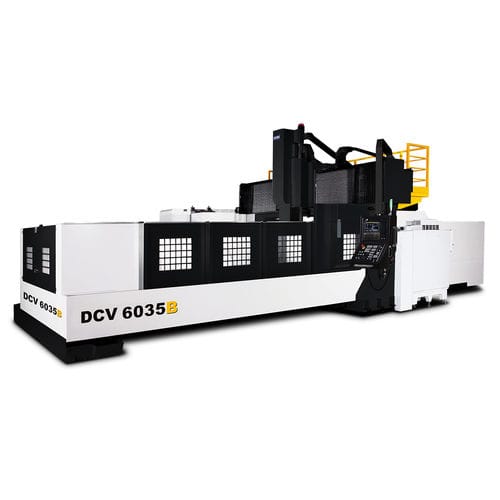

3-axis CNC machining center DCV6035Bverticaldouble-columncutting
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Associated functions
- cutting
- Other characteristics
- high-rigidity, direct-drive
- X travel
6,200 mm
(244.09 in)- Y travel
3,500 mm
(137.8 in)- Z travel
762 mm, 1,016 mm
(30 in, 40 in)- Rotational speed
241 rpm, 4,500 rpm, 6,000 rpm, 10,000 rpm
(1,514 rad.min-1, 28,274 rad.min-1, 37,699 rad.min-1, 62,832 rad.min-1)- Power
25 kW, 45 kW
(33.99 hp, 61.18 hp)- Work feed X-axis
12,000 mm/min
(8 in/s)- Work feed Y-axis
15,000 mm/min
(10 in/s)- Work feed Z-axis
15,000 mm/min
(10 in/s)- Table load capacity
25,000 kg
(55,116 lb)- Tool weight (max)
20 kg
(44.1 lb)- Weight
65,000 kg
(143,300.47 lb)
Description
Superb Body Structure
Extra wide column base with boots design prevents the headstock from leaning forward.
Direct drive gearbox design on X-axis offers smooth axial response, high torque, and low backlash.
X-axis is equipped with 3 roller type guideways and numerous slider blocks for great load capacity of 21 slider blocks.
3 roller type guideways on Y-axis strongly support the headstock and saddle.
The spindle incorporates roller type spindle bearings for extremely high cutting rigidity.
