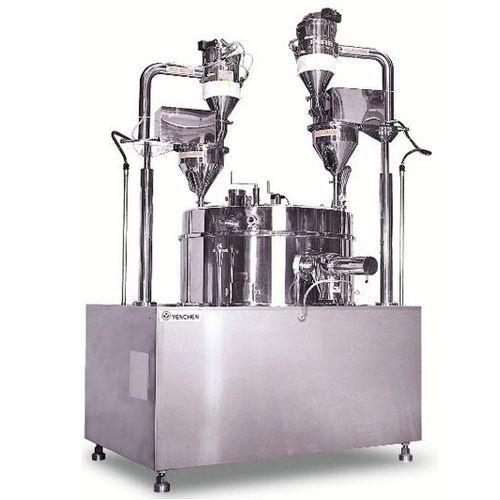

Centrifugal pelletizer CG

for the food industryfor the pharmaceutical industry

Centrifugal Granulator Pelletizer Coating Machine Centrifugal Coater Granulator is mainly used for granulation or coating process. The cores (seeds) are placed on the turntable and hot air blows upward from the gap of the turntable and the granulation area. The air flow causes the rolling of the cores; at the same time, the binder solution sprays on the rolling cores via spray gun. The process involves coating and drying of the cores at the same time, and till the repeated actions achieve the desired coating thickness or granule size. If powder sprays at same time, it will form a layer with the binder and results coating / granules on the cores. Function 1. Pellet powder coating 2. Pellet suspension coating 3. Pellet film coating 4. Pellet enteric coating Above are suitable for both aqueous solutions and organic solvents. Features 1. Film Coating Granule Size : φ0.2-0.8mm 2. Granule Size : φ0.4-2.5mm 3. Powder coating / film coating / color coating 4. Suitable to use aqueous solutions and organic solvents 5. Air inlet is equipped with a filter device 6. Equipped with baffle to achieve best rolling result 7. Two types of spray gun: 　 a. For suspension coating 　 b. For granule / coating use 8. The following functions are adjustable: 　 a. Temperature 　 b. Speed of turntable 　 c. Powder charging speed 　 d. Spray gun volume / pressure 　 e. Air flow 9. See-through glass allows observation of the operations and the status of the products druing the process that enhances the chances of success by the adjustment of the production parameters. 10. Produclion scale up model is accommodated by the pneumatic discharge system for easy operation.
