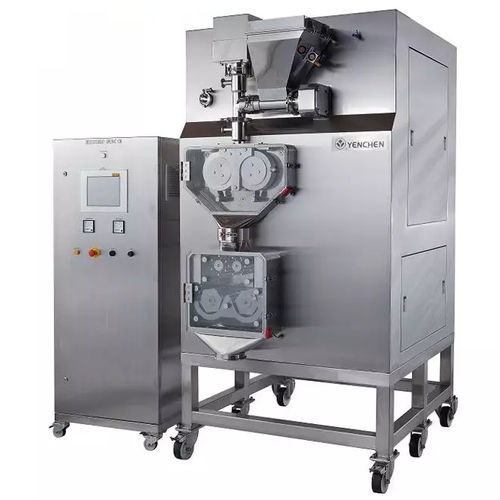

Pelletizing roller compactor RC

hydraulic

Dry Granulator Roller Compactor serves as a pivotal solution for dry granulation, particularly benefiting drugs sensitive to moisture and products requiring improved flowability or density augmentation. By eliminating the need for water and solvents during production, Roller Compactor obviates the drying process, significantly streamlining operations. Additionally, dry binders and lubricants can be added, further enhancing the efficiency and effectiveness of the granulation process. The powder is pushed downward into pressure screw by screw feeding system which then passes through the gap between two compacting rollers where pressure screw and hydraulic pressure squeeze the powder to form flakes. The flakes are then choppped into smaller sizes by crushing rollers. Lastly by dry granulation process, the amount of uniform size granules are made as required. Features 1. Regulation compliance: cGMP, PIC/S, 21 CFR part11. 2. Turnkey design: The roller compactor is designed with 3 functions, which are "compression", "crushing", and "granulation". 3. Flexible adjustment: Hydraulic pressure is adjustable to accommodate wide range of materials. Powder feeding screw and roller speed can be adjusted with variable speeds. 4. Cooling function: The connection of a cooling system to the bottom of the hopper can reduce the high temperature generated during operation to ensure product quality. 5. Closed-system design: Dust does not leak during production. 6. Utility model patent: Powder feeding screw, roller, crushing roller, granulation claw, granulation screen can be fast installed and removed.
