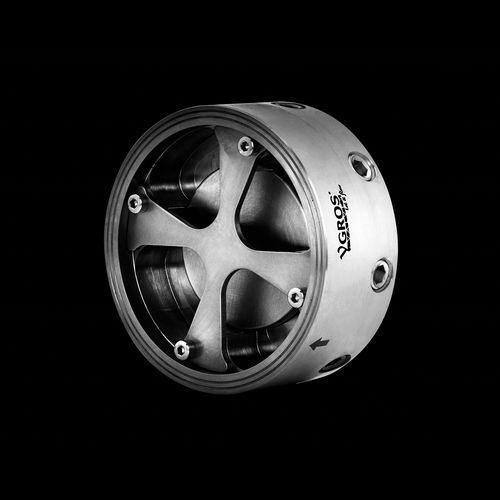

Hygienic check valve WAFERspringlessfor waterfor gas
Add to favorites
Compare this product
Characteristics
- Type
- springless
- Fluid
- for water, for gas
- Body
- wafer
- Applications
- for water, for gas, for steam, for vacuum
- Material
- stainless steel
- Valve plug seal material
- EPDM, Viton®, NBR, silicone, FKM
- Other characteristics
- horizontal, hygienic
- DN
Min.: 25 mm
(0.984 in)Max.: 200 mm
(7.874 in)- Pressure
10 bar, 16 bar, 25 bar, 40 bar
(145 psi, 232.1 psi, 362.6 psi, 580.2 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 220 °C
(428 °F)
Description
The innovative Wafer valve, specially designed for applications in vacuum, gas and water treatment industries.
Maintenance-free. Tightness guaranteed in all installation positions, even vertical with downward flow.
WAFER check valve resists up to 220°C for fluid gases and steam.
BENEFITS AT A GLANCE
this innovative design principle is particularly advantageous for systems in which the fluid is compressible (gas) or is handled at low pressure. Ygros WAFER valve is kept open with a minimal pressure difference.
High chemical thanks to its design in 1.4404 (AISI 316 L) and 1.4462 (Duplex), it guarantees a longer valve life construction.
Safe closing: ensured by its patented magnetic principle.
Any installation position possible: it can be installed in horizontal, vertical up and down positions.
Energy saving: its operating principle and innovative design allow a smooth and free flow (laminar flow), thus minimising turbulence and pressure losses.
Maintenance free
