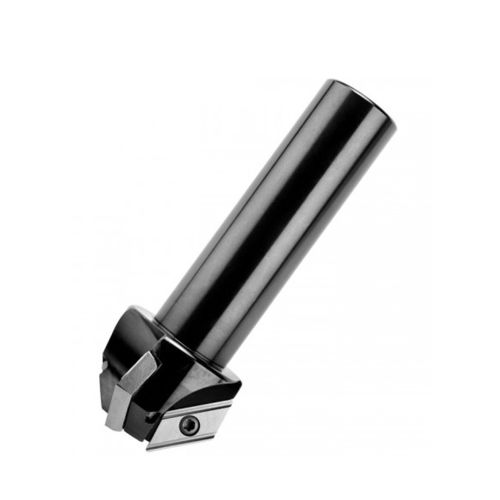

Insert milling cutter C

chamfering45° helix angle35° helix angle

Chamfer milling cutter for CNC of YIH TROUN C series can move vertical or horizontal linear movement on spindle for hole and edge chamfering, or for various chamfering by CNC with program. Two chamfer angles are 30° and 45°. Holder uses pre-harden steel material with higher strength and is equipped with screws and keys imported from Swiss. Tool life is thus raised comprehensively. Among them, longest chamfering insert is 40mm with very long chamfer edge length. There will be no lapping mark generated during machining of big chamfer. Besides, there are 3 kinds of carbide grade and 3 insert geometries for machining of various work piece material. Features Multi-teeth design for small hole chamfer. No step-line issue for chamfering at long edge length. Very good effect as machining of chamfer with big depth.
