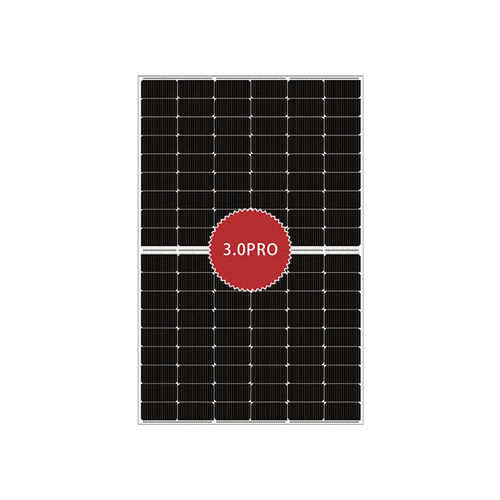

Monocrystalline silicon PV solar module PANDA 108CELL 182TOPCon
ISOTUVIEC

Monocrystalline silicon PV solar module - PANDA 108CELL 182TOPCon - Yingli Solar - ISO / TUV / IEC

Monocrystalline silicon PV solar module - PANDA 108CELL 182TOPCon - Yingli Solar - ISO / TUV / IEC - image - 2

Monocrystalline silicon PV solar module - PANDA 108CELL 182TOPCon - Yingli Solar - ISO / TUV / IEC - image - 3

Add to favorites

Compare this product

Characteristics

Technology

monocrystalline silicon

Certifications

TUV, ISO, IEC

Peak power (Wp)

Max.: 435 W

Min.: 311.39 W

Open-circuit voltage

Max.: 38.67 V

Min.: 35.76 V

Short circuit current

Max.: 14.32 A

Min.: 11.22 A

Max power voltage

Max.: 32.1 V

Min.: 29.6 V

Max power current

Max.: 13.57 A

Min.: 10.51 A

Module efficiency

Max.: 22.28 %

Min.: 21 %

Lenght

1,722 mm
(68 in)

Width

1,134 mm
(45 in)

Height

30 mm
(1 in)

Weight

21.5 kg
(47.4 lb)

Description

PANDA 3.0 modules use the industry's cutting-edge n-type monocrystalline TOPCon cell technology. With high quality encapsulation materials and classic glass-backsheet structure, PANDA 3.0 modules are perfectly suited to the harsh environment and provide you with high reliability and quality assurance.
