Monocrystalline silicon PV solar module YLM 120CELL 210PERC
PERCTUVCE

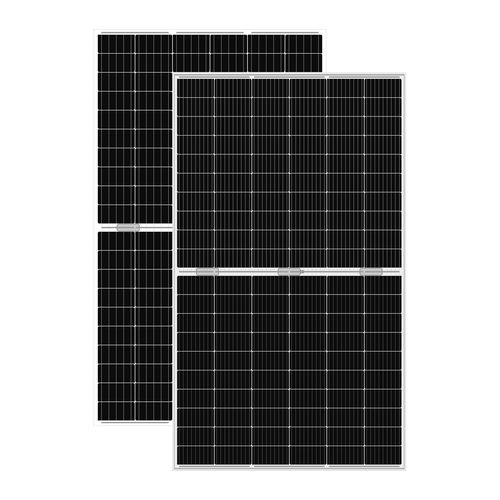

Monocrystalline silicon PV solar module - YLM 120CELL 210PERC - Yingli Solar - PERC / TUV / CE

Monocrystalline silicon PV solar module - YLM 120CELL 210PERC - Yingli Solar - PERC / TUV / CE - image - 2

Add to favorites

Compare this product

Characteristics

Technology

monocrystalline silicon

Features

PERC

Certifications

TUV, CE, ISO, IEC

Peak power (Wp)

Max.: 605 W

Min.: 580 W

Open-circuit voltage

Max.: 41.8 V

Min.: 40.8 V

Short circuit current

Max.: 18.48 A

Min.: 18.21 A

Max power voltage

Max.: 34.8 V

Min.: 33.8 V

Max power current

Max.: 17.39 A

Min.: 17.16 A

Module efficiency

Max.: 21.38 %

Min.: 20.49 %

Lenght

2,172 mm
(86 in)

Width

1,303 mm
(51 in)

Height

35 mm
(1 in)

Weight

31 kg
(68.34 lb)

Description

YLM 3.0 modules use high efficiency p-type monocrystalline PERC cell technology. With high quality encapsulation materials and classic glass-backsheet structure, YLM 3.0 modules are perfectly suited to the harsh environment and provide you with high reliability and quality assurance.
