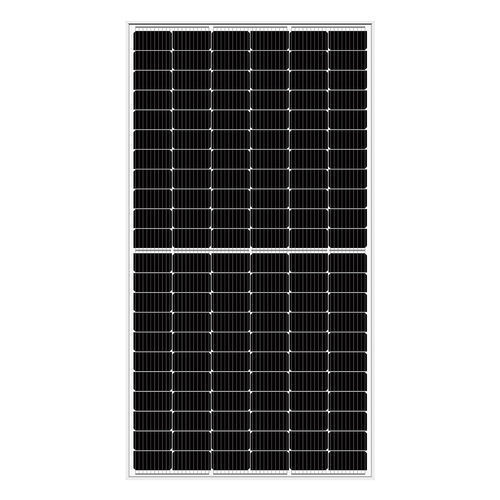

Monocrystalline silicon PV solar module YLM 132CELL 210PERCPERCTUVCE
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Features
- PERC
- Certifications
- TUV, CE, ISO, IEC
- Peak power (Wp)
Min.: 645 W
Max.: 670 W
- Open-circuit voltage
Min.: 45.1 V
Max.: 46.1 V
- Short circuit current
Min.: 18.26 A
Max.: 18.54 A
- Max power voltage
Min.: 37.5 V
Max.: 38.5 V
- Max power current
Min.: 17.2 A
Max.: 17.41 A
- Module efficiency
Min.: 20.76 %
Max.: 21.57 %
- Lenght
2,384 mm
(94 in)- Width
1,303 mm
(51 in)- Height
35 mm
(1 in)- Weight
34 kg
(74.96 lb)
Description
YLM 3.0 modules use high efficiency p-type monocrystalline PERC cell technology. With high quality encapsulation materials and classic glass-backsheet structure, YLM 3.0 modules are perfectly suited to the harsh environment and provide you with high reliability and quality assurance.
