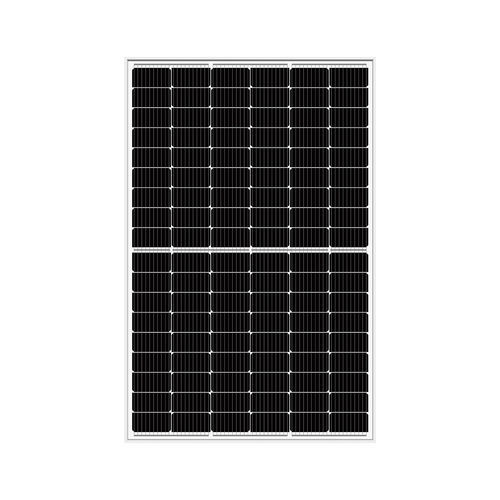

Monocrystalline silicon PV solar module YLM 108CELL 182PERCPERCTUVCE
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Features
- PERC
- Certifications
- TUV, CE, ISO, IEC
- Other characteristics
- black
- Peak power (Wp)
Min.: 390 W
Max.: 415 W
- Open-circuit voltage
Min.: 36.84 V
Max.: 37.39 V
- Short circuit current
Min.: 13.62 A
Max.: 13.78 A
- Max power voltage
Min.: 36.8 V
Max.: 37.4 V
- Max power current
Min.: 12.86 A
Max.: 13.35 A
- Module efficiency
Min.: 19.97 %
Max.: 21.25 %
- Lenght
1,722 mm
(68 in)- Width
1,134 mm
(45 in)- Height
30 mm
(1 in)- Weight
21.5 kg
(47.4 lb)
Description
YLM 3.0 modules use high efficiency p-type monocrystalline PERC cell technology. With high quality encapsulation materials and classic glass-backsheet structure, YLM 3.0 modules are perfectly suited to the harsh environment and provide you with high reliability and quality assurance.
