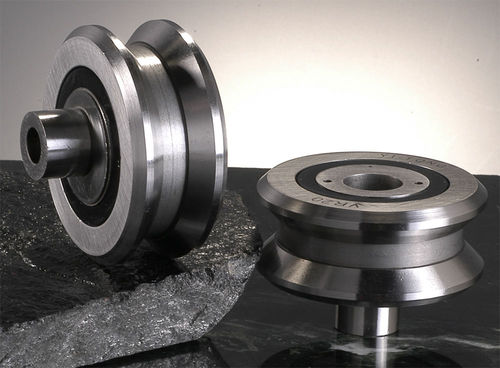

Bearing wheel type roller SG seriesstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- bearing
- Material
- stainless steel
- Outer diameter
Min.: 17 mm
(0.669 in)Max.: 42 mm
(1.654 in)- Inside diameter
Min.: 5 mm
(0.2 in)Max.: 12 mm
(0.47 in)- Load capacity
Min.: 820 N
Max.: 5,100 N
Description
Track rollers with Gothic arch groove - type SG
The function of series SG rollers is same as the series LFR rollers. But they are mainly used in the flat track and in the condition required compact structure. After rollers are installed to the slider, the shaft will be not or seldom over the roller's side planes.
