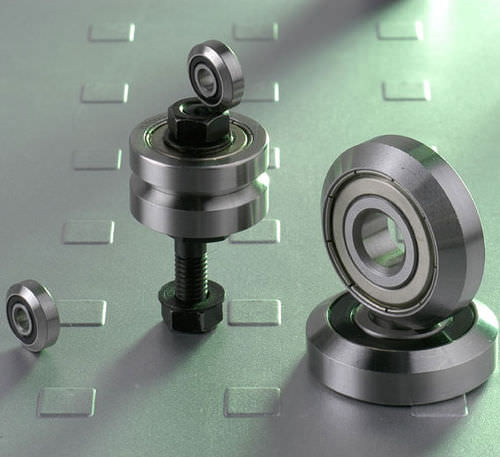

Roller bearing RE seriesdeep groovesteeljournal
Add to favorites
Compare this product
Characteristics
- Rolling element
- roller
- Configuration
- deep groove
- Material
- steel
- Applications
- journal
- Other characteristics
- V-form
- Inside diameter
Min.: 4 mm
(0.16 in)Max.: 10 mm
(0.39 in)- Outside diameter
Min.: 12.7 mm
(0.5 in)Max.: 25 mm
(0.98 in)- Width
Min.: 4 mm
(0.157 in)Max.: 14 mm
(0.551 in)
Description
Journal Bearings, Track rollers with one beveling profile - type RE
Journal Bearings are used for the LINEAR GUIDANCE system, in which the track has a " V " profile groove with an angle of 70 degrees. .
Journal Bearings feature the internal design of high precision deep groove ball bearings and a thick-walled outer ring, so bearings can accommodate higher load carrying capacity.
Bearings are made of the high-quality bearing steel, processed by heat treatment and precision grind, and are filled with a long service life, high-grade and multi-purposes grease. Bearings take the metal shield ( ZZ ) or rubber seal ( 2RS ) to prevent the dust. YITONG also can provide the bearings with concentric or eccentric pivot.
