Orthophosphate analyzer IQ SensorNet P700

waterwastewaterphosphorus

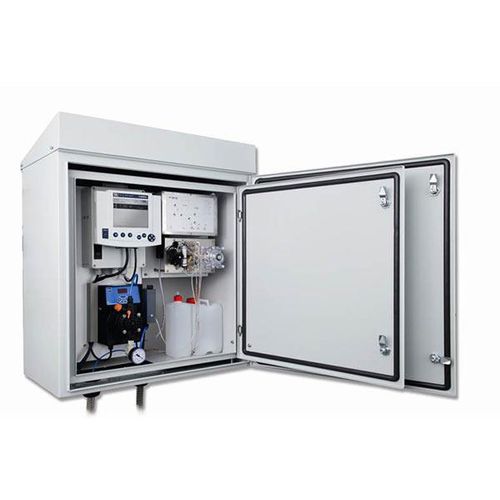

The P700 is a cabinet-style analyzer for monitoring orthophosphate in a wide variety of wastewater applications from primary treatment through final effluent. The versatile system can process samples with solids concentrations of up to 6,000 mg/L in ambient temperatures as low as -4°F allowing measurement of orthophosphate where it is most needed for efficiently controlling phosphorus removal. The sampling system includes a lightweight 0.45 micron filter and a pump inside the analyzer cabinet. The analyzer is programmable for automatic cleaning and calibration to a standard. The P700 can be used as a stand-alone analyzer or be incorporated into a larger network with IQ SensorNet 2020 or 282/284 universal controllers. - Compact design - pump for permeate supply is integrated in the analyzer housing - Low reagent consumption - exchange solutions on average every 4-8 months, reduces overall cost vs. other analyzers - Automatic or manual calibration (adjustable) - Automatic cleaning of photometer tubing (adjustable) - Uses proven Vanadomolybdate (yellow) method of detection - Wide measuring range - two measuring ranges allow the P700 to be used in a wide range of locations throughout the Water Resource Recovery Facility - Indoor or outdoor versions available with heating or cooling Specifications Certifications IP54, CE, UL, cETLus Connectivity / Communications interfaces via IQ Sensor Net-components, analog outputs, Relays Equipment used with 2020 3G Languages English/ German Measurement Method / Channels Vanadomolybdate (yellow)
