Absolute rotary encoder H-3342 series
opticalmagneticnon-contact

Absolute rotary encoder - H-3342 series - YSI - optical / magnetic / non-contact
Absolute rotary encoder - H-3342 series - YSI - optical / magnetic / non-contact
Absolute rotary encoder - H-3342 series - YSI - optical / magnetic / non-contact - image - 2
Absolute rotary encoder - H-3342 series - YSI - optical / magnetic / non-contact - image - 3
Add to favorites
Compare this product


Characteristics

Type
absolute
Technology
optical, magnetic
Construction
shaft-mounted, non-contact
Output signal
4-20 mA

Description

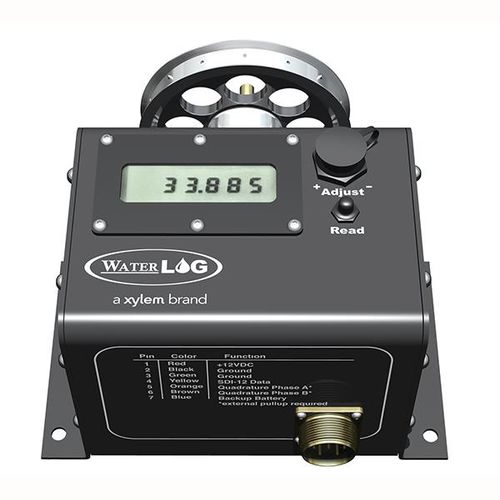

WaterLOG Shaft Encoder with LCD Display, SDI-12 and 4-20MA Outputs Designed specifically for measuring water level in a stilling well, the Shaft Encoders (H-3342) sturdy design incorporates the use a float and pulley to produce accurate data within minutes of installation. Now, with the use of magnetic sensors, the WaterLOG Shaft Encoder features minimize static sensitivity for enhanced performance. You'll enjoy the easy to read, ultra low power, built-in LDC display allowing you to view the last measured value at any time. And this series is compatible with most data loggers, to allow easy installation. Features: - Non-contact optical encoder preserves correct position even if the power is lost - 65,536 counts per revolution - Accuracy is 0.00024 ft. (.0073152 cm) 1 ft. (.3048 m) diameter pulley - Max turns =±32,768 - Zero backlash - SDI-12 and 4-20 mA output Specifications Connectivity / Communications SDI-12: High: 3.5 volts (Min), Low: 0.8 volts (max); 4-20mA (optically isolated), Loop voltage: 8.0V min, 35V max, Resolution: 4µA (12-bit DAC) Graphic Display Yes Operating Temperature -40 ° to +60 ° C Power Power Requirements: Voltage Input 9.6 to 16.0 volts DC; Current: Standby:150µA typical Storage Temperature -50 ° to +70 ° Warranty 2 years
