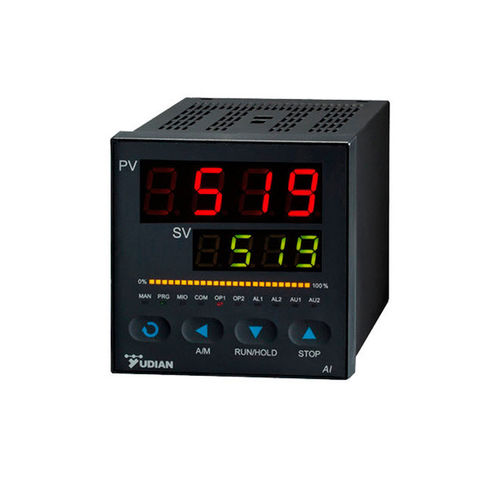

Temperature controller with LCD display AI-519analogPIDprogrammable
Add to favorites
Compare this product
Characteristics
- Display
- with LCD display, analog
- Type
- PID, programmable, single-loop, with direct cooling
- Protection level
- explosion-proof, dust-proof
- Use
- heating, cooling, industrial, process, food, laboratory, floor heating/cooling, for the plastics industry, for injection molding machines
- Other characteristics
- configurable, universal, auto-tuning, DIN rail, multi-function, RS-485, 4-20 mA, automatic, economical, ramp/soak-programmable
- Maximum temperature
Min.: -199 °C
(-326 °F)Max.: 1,999 °C
(3,630 °F)
Description
PID temperature controller is a control loop feedback mechanism widely used in industrial control systems and a variety of other applications requiring continuously modulated control.
- Economical,wide application,precise control
- High accuracy:0.25% FS ±0.1°C
- APID, AMPT, PID, ON-OFF selectable with auto-tuning
- Dual 4-digit display of process & set point
- LED bar graph selectable for display
- Universal inputs:Thermocouple, RTDs, Linear currect/voltage
- Wide variety of alarm modes selectable
- heat/cool dual output supported
- RS485/232 communication supported with protocol AIBUS/MODBUS
- Worldwide power supplies: 110~240VAC, 24VDC, 50/60HZ,
- Standard Size: 96*96, 48*48, 72*72, 48*96, 96*48
- CE,UL,RoHS,ISO9001 approved/certificated
- 1 years' warranty
VIDEO
