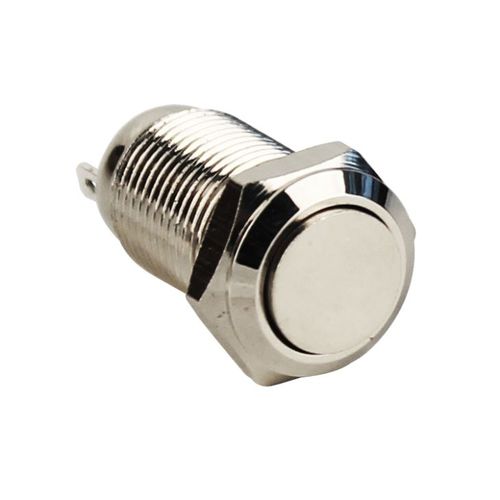

Touch push-button switch IB10Q-G11 series
waterproofIP65IP67

touch push-button switch
touch push-button switch
touch push-button switch
Add to favorites
Compare this product


Characteristics

Type
touch
Protection level
waterproof, IP65, IP67
Other characteristics
industrial, metal, latching action, momentary

Description

10mm 12V Metal Push Button Switch Place of Origin:Zhejiang. China (Mainland) Model Number:IB10Q-G11F /N Protection Level:IP65 Max. Current:3A Max. Voltage:250VAC We have many different kinds of waterproof anti-vandal switch, it is most popular item in our push button switch sériés. They are CE: RoHs certified, offering a rating of 3A to 15A 250VAC. The switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching). Our push button switch cornes with 7,8,10,12,16,19,22,25,28, 30,40mm panel cutout diameter, they can be with 1N0,1NC, INOINC or 2N02NC. The switch housing can be aluminum oxidatiombrass nickel or stainless Steel. These anti-vandal pushbutton switches are popular for use in kiosk applications, ticket dispensers and industrial-type applications etc. Quick Details Product Name: Push Button Switch Model: IB10Q-G11F/N or IB10Q-G11Z/N Mounting Hole: 10mm Operation Type: Momentary or Latching Switch Combination: 1N01NC Head Type: High round Terminal type: 3 Pin Terminais Enclosure Material: Brass nickelage Delivery Days: 1-3 days Contact Résistance: 50 mQ max Insulation Résistance:1000MQ Min Dielectric Intensity: 2000VAC Operating Température: -20°C ~+55°C Customized symbol,colored housing or Connector - Acceptable and with fast shipping Accessories: Nut, Rubber Gasket.Resistor Common description for switch: (1) Momentary function: When you push the switch and then move your finger, the actuator will back to the original position. (2) Latching function: When you press the switch, it will be ON and keep locking until you press again, it will return to the original position.
