L16T anti vandal switch is suitable for harsh conditions and can withstand possible malicious damage. With transient action triggering, it is ideal for access control and access control applications such as elevators, emergency buttons, parking management systems, emergency phones, vending machines and food handling.
L16T anti vandal switch has rugged design combines with a variety of styles, ehances its design and manufacturing integration services, provides a high flexibility.Also, it has high quality solution for our numerous industry users, so as to meet their design requirements for control panel.

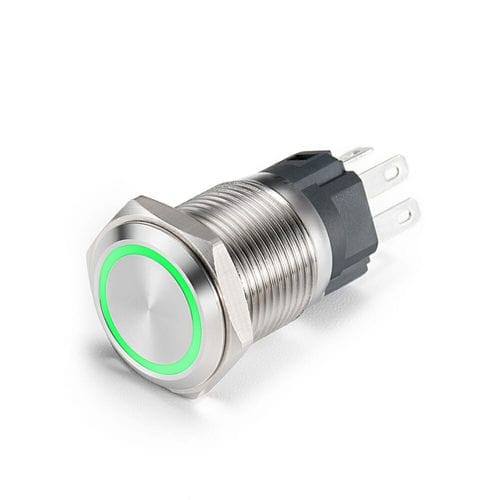

L16T Anti vandal switch
• Backlit option
• RGB LED illumination option
• Long life, high reliability
• IP65 rated for dust and moisture protection
• Multiple function options
• Dot, ring or symbol illumination available
Technical Data
• Max. Panel Thickness: : Max. 0.394″ (10.0mm)
• Kind : Single-pole on-off Switch
• Certification : ISO9001, CE, ISO14001
• Transport Package : Carton
• Usage : Control Button, Start Button, Control Switch
• Specification : 42x23x32cm
• Terminal : Solder lug (1.8X0.4)
• Max. Switch Rating : Ith: 3A Ui: 250VAC
• Contact Resistance : ≤50mΩ
• Insulation Resistance : ≥1000mΩ
• Dielectric Strengh : 2000VAC
• Mechanical Life : 500,000cycles(max)
• Electrical Life : 30,000cycles(min)
• Contact Material : Silver Alloy
• Torque : 5~14Nm
• Operation Pressure : approx. 3~5N
• Protection : IP65/ IK09
