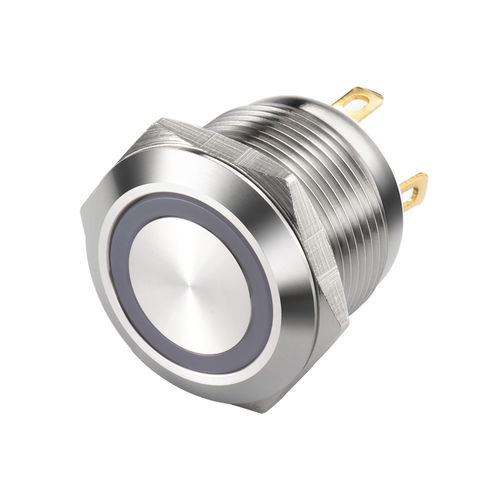

Micro push-button switch LS19 Series
sensitiveruggedvandal-proof

micro push-button switch
micro push-button switch
micro push-button switch
micro push-button switch
micro push-button switch
micro push-button switch
Add to favorites
Compare this product


Characteristics

Type
sensitive
Protection level
rugged, vandal-proof, sealed, harsh environments, weatherproof, IK09, IK 08, secure, corrosion-resistant, IP65, IP67
Other characteristics
backlit, LED-illuminated, illuminated dual-color, standard, AC, DC, momentary, metal, dual, round, with silver contacts, custom, industrial, with indicator light, micro, custom, ring, panel-mount, compact, flush-mounted, lighting, non-illuminated, control, on/off, for vehicles, flat, latching action, rugged, flush-mount, sealed, LED, marine, actuator

Description

Ls19 economy type anti vandal switches are installed in areas exposed to wind and rain for applications such as external security systems. This means that the material of the switch must not only withstand frequent use, but also withstand harsh environments. The use of appropriate materials of the Ls19 economy type anti vandal switch is essential for long-term and reliable protection of the precision electronic components in the equipment. We provides other high quality products like L12 Anti vandal switch, if you are interested in it, click here for more information. Features: • Long life, high reliability • Illuminated and Non-Illuminated Basic Info. Usage: - Control Button, Reset Button, Control Switch Certification: - CE, CCC Material: - Stainless Steel Transport Package: 20PCS/Box Specification: CE, ROHS, REACH Technical Data • Max. Panel Thickness: : 0.394″ (10.0mm) • Terminal : Solder lug (2.8 x 0.5) • Contact Resistance : ≤100mΩ • Insulation Resistance : ≥1000mΩ • Dielectric Strengh : 2000VAC • Mechanical Life : 1,000,000cycles(max) • Electrical Life : 50,000cycles(min) • Contact Material : Gold Plated • Rear Nut Fixing Torque : 0.57Nm • Operation Pressure : approx. 5.5N
