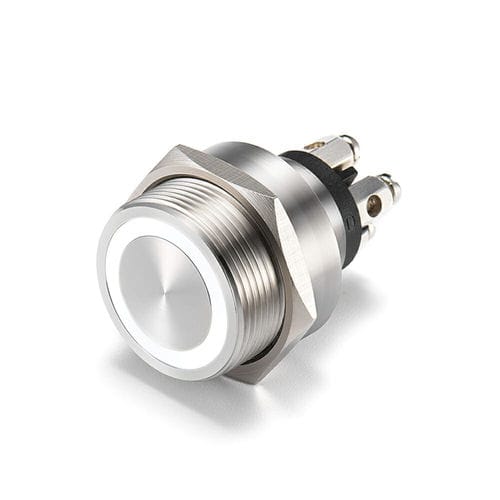

Vandal-proof push-button switch L22O Series

sealedruggedweatherproof

• Micro-trip • Long life, high reliability • Anti-Vandal IK09/ Sealed IP65 • Dot or ring illumination available * Base voltage on LEDs: 1.8V @ 20mA for Red, Yellow and Orange LED colors / 2.8V @ 20mA for Blue, Green and White LED colors Technical Data • Max. Panel Thickness: : Max. 0.394″ (10.0mm) • Terminal : Screw and Solder lug (2.8X0.8) • Contact Resistance : ≤100mΩ • Insulation Resistance : ≥1000mΩ • Dielectric Strengh : 2000VAC • Mechanical Life : 1,000,000cycles(max) • Electrical Life : 50,000cycles(min) • Contact Material : Silver Alloy • Torque : 0.57Nm • Operation Pressure : approx. 8N • Material : Switch Assembly : UL94V-0 rated Polyamide (Nylon) • Tags : Copper Alloy • Terminals : Copper Alloy • Switch Body & Actuator : Stainless Steel/ Anodized Aluminum • Lens and Lens Body : Polycarbonate • Internal Seal : Silicone • O Ring : Nitrile • Color : Type : LED (ratings @ 20mA)
