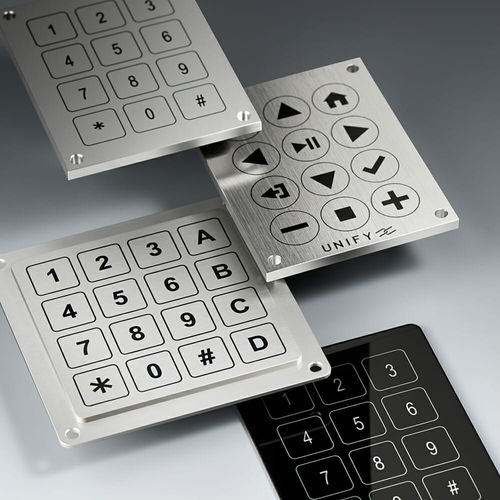

Panel-mount keypad
metalRS-232USB

panel-mount keypad
panel-mount keypad
panel-mount keypad
panel-mount keypad
panel-mount keypad
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Material
metal
Connection type
RS-232, USB
Protection level
IP68, IP69K, IP69, waterproof

Description

The product is made to serve reliably in the harshest conditions, such as extreme weather and in high-risk areas where vandalism is a concern. The keypads has waterproof and tamper-proof details, contains no moving parts and is constructed to deliver maximum long-term use. This keypad comes with Matrix output as standard, eliminating the need for costly ASIC interfaces. • Maximum reliability and durability, Ideal for use in rough environments. • IP68 Dust and water resistant, Sea-water and detergent resistant. • No moving part, maintenance free. • Made of one piece of solid metal, totally rugged. • Potted switching unit at rear seals against all contamination and prevents freezing • Flexible anodize print or laser engrave layout Electrical Data • Standard Output : Matrix / Common Bus • Contact Arrangement : SPST N.O. • Switch Voltage : 1 – 24V AC/DC • Switching Current : 0.2A / 1A • Force required for switch operation : 3 – 5N Mechanical Data • Material : Aluminium / Stainless Steel • Graphics : Anodized Printing / Laser Engraving • Electrical Connection : Flat Cable / Pins • Available Interfaces : RS232 / RS485 / USB/ I2C / ASCII / UART • Environmental Data Operating Temperature : -20°C to 85°C • Exceeds Class 1 Div 1 hazardous location requirements • Impact proof to lK10 • IP68-IP69K wash-down proof up to 100 Bar (manysubmerged installations) • Compliant with IEC/EN 60529,CE, ROHS,REACH • Neither creates nor is affected by ESD, RFI or EM.

Catalogs
