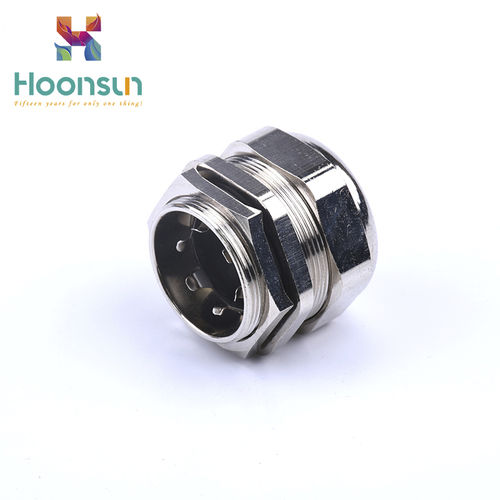

Nickel-plated brass cable gland HX-EMC series

waterproofthreaded

The EMC cable gland is suitable for high voltage places such as electric boxes and transformers. The following is a description of EMC cable gland: 1. European CE certification and European ROHS certification 2. cable gland is made of nickel-plated brass, the clamping part is made of nylon plastic (PA), and the seal and O seal ring are made of NBR. 3. in the scope of the specified bayonet, and use the O-ring to tighten the pressing head to achieve the IP68-10 bar pressure. 4. static: -40 ℃ to 100 ℃, short time to 120 ℃. Dynamic: -20 ℃ to 80 ℃, a short time of 100 degrees centigrade 5. thread length: for thin machine plate openings or equipment with internal thread, long thread is suitable for joining thick plank. Thread lengthening can be customizable. 6. product characteristics: the product is specially designed to use the metal cable fixed head as an end body. When the isolating cable enters the fixed head, the attached copper contact sheet can be used to contact the wire mesh in the cable to guide the interference electromagnetic wave to the grounding wire, so as to make the electromagnetic wave. The source of interference is evacuated. The full dimension of the copper cable fixed head can be fully applied to all fields of magnetic wave protection and provides a solid effect of waterproof IP68 and fixed tensile.
