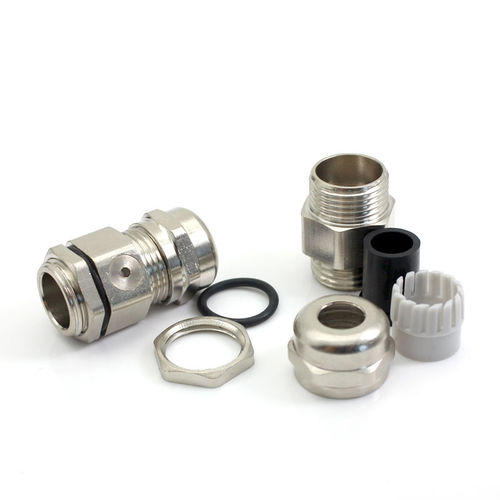

Waterproof cable gland JX-M-BR series

nickel-plated brassthreadedstraight

Material: nickel plated brass, Clamping insert: Nylon PA Seal: nitrile rubber(NBR) ,using weathering rubber (EDPM) Product Certification: CE, ROHS, IP68 and ISO9001. Thread Size: Metric Thread Material: The joint body parts are made of nickel plated brass, the clamping insert is made of Nylon PA, and the seal is made up of nitrile rubber(NBR) ,using weathering rubber (EDPM) . Product Certification: CE, ROHS, IP68 and ISO9001. Protection Degree: in the specific cable range, the using of the O-ring helps tighten head, so that to reach IP68-10 bar pressure. Working temperature: Static: -40℃to 100℃, Short time to 120℃. Thread length: The short thread is suitable for holes in the board or equipment with inner thread, while the long thread is available for thick planted. Usage: Fix the machine board with the body, and press the tight head tightly to fix the cable. More options: Customization is acceptable. Welcome to inquire.
