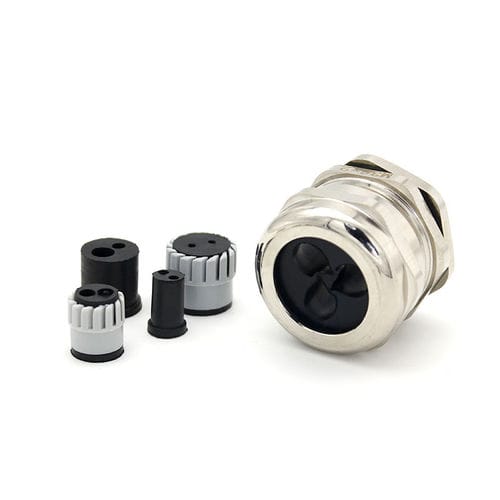

Multi-passage cable gland JX-M / PG / G series

nickel-plated brasswaterproofchemical-resistant

Thread Size: Metric Thread, PG, G thread Material: The joint parts are made of nickel plated brass, the clamping parts are made of plastic (PA) , and the seals and O-ring are made of nitrile rubber (NBR) . Product Certification: CE, ROHS, IP68 and ISO9001 Protection degree : in the specific cable range, the using of the O-ring helps tighten head, so that reach to IP68-10 bar pressure. Colors: Metallic Working temperature: Static: -40℃to 100℃, short time up to 120℃. Dynamic: -20℃to 80℃, short time up to 100℃ Characteristic: The cable gland is a product of large scope, high tensile strength, waterproof, dust-proof, salt, acid, alcohol, oil and solvent resistant. Variety of outlet holes: There are 2-8 holes designed for outlet cable, so that each cable to get the best water-proof insulation, and not intertwined. Note: For more holes, please specify the relevant parameters, such as: model specification, the cable diameter, number of holes and so on.
