- Stainless steel cable gland
- YUEQING JIXIANG CONNECTOR CO., LTD

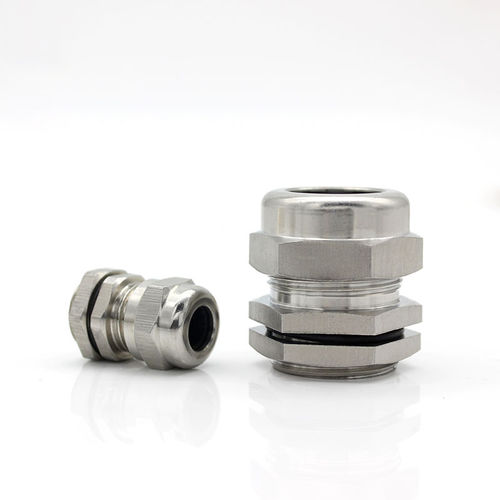

Waterproof cable gland JX-M-SS seriesstainless steelchemical-resistantthreaded
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel
- Protection level
- waterproof, chemical-resistant
- Other characteristics
- threaded, metric, hexagonal
- Cable diameter
Max.: 80 mm
(3.15 in)Min.: 2 mm
(0.08 in)- Thread diameter
Max.: 100 mm
(3.94 in)Min.: 8 mm
(0.31 in)- Operating temperature
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)
Description
Thread Size: Metric Thread
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃to 100℃short time to 120℃
Function: Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent.
More options: Customization is acceptable.Welcome to inquire.
