- Yueqing RunEasy Electronic Technology Co.,Ltd.

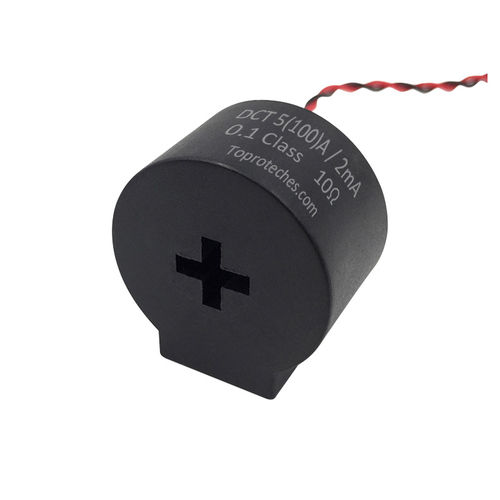

Current transformer C-05encapsulatedfor electronicsfor energy meters
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- encapsulated
- Applications
- for electronics, for energy meters
- Mounting
- through-hole
- Norms
- IEC
- Other characteristics
- toroidal, epoxy resin, high-accuracy
- Primary current
5 A, 10 A, 15 A, 20 A
- Secondary current
Min.: 2 mA
Max.: 20 mA
- Frequency
50 Hz, 60 Hz
Description
CURRENT TRANSFORMERS FOR ELECTRONIC ENERGY METERS
FEATURES:
-Adopted high permeability core, high accuracy, excellent linear performance;
-Anti-combustion plastics case;
-Encapsulated with epoxy resin with strong insulation ability;
-Current transformers with DC tolerance for option;
-Conform to IEC 62053-21,-23;
SPECIFICATION:
Ratio : 1:2500
Operation temperature range : -40 ～ +85 ℃
More detailed specification file can be provided if you inquiry.
