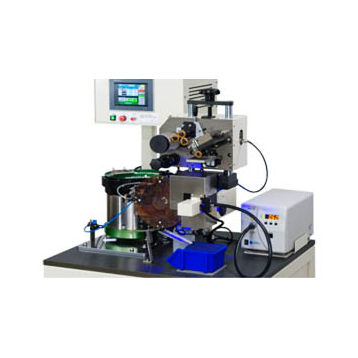

Automatic pad printing machine HGMK-1ATC

for electronic componentsrotaryhigh-speed

Automatic Rotary Marking Machine HGMK-1ATC High Speed Curved Surface Component Auto Marking Equipment HGMK-1ATC is mainly applied to curved surface marking (it can be divided into a general marking and a highlight marking.), the major structure of this machine is CAM system, and the design of this machine focus at the two-pushing center method for marking, therefore, it can be kept stable under high speed. The condition of the detecting control is complete, high safety. The equipment can advance the marking quality and production speed of the components with curved surface effectively, same series of products could be programmed to 2 ~ 3 kinds of specifications of product. High Speed Curved Surface Component Auto Marking Equipment HGMK-1ATC is applied to the marking of product, which curved surface has square outside and round inside or has a strange outline, has an excellent marking effect. Feature . It is specially designed for the marking of products with surface which have square outside and round inside. . Feed-in separation is connected with the mechanism of CAM, the movement is accurate and stable. . After marking, HGMK-1AT could connect to Oven-heat Tunnel Stove for total process. . It could be applied to printing and coating. Specification Model No.HGMK-1ATC Power Supply1φ, AC 220V, 50 / 60 Hz Dimension ( L x W x H )70 x 62 x 150 cm (Main System) (Could connect to Tunnel Stove for heat) InkOven heat Ink Marking RangeProducts which Height > 0.7mm are acceptable Application Rangeφ3~φ20 mm > L: 3-20 mm Accept special requirement of order ThroughputMax 50-60 pcs / m Air Pressure4-6 kg / cm2
