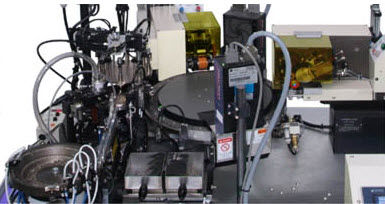

Automatic coating application system YLSCT-02B2

marking

Coating & Marking Equipment YLSCT-02B2 Automatic coating and marking equipment, YLSCT-02B2, (Model: Coating and Stamping equipments), integrate the process of coating and making together, it has high production efficiency to the inductors, which need to separate polarity, are fragile and are not easy for multi-feeding. Automatic coating and marking equipment, YLSCT-02B2, utilizing disc transport mechanism to integrate the process of surface cleaning, polarity detection, polarity steering, UV-paste coating, stamping UV curing together, structure is trim, streamlined and function is complete. Cleaning device cleans element’s surface dust Cleaning device utilizing the air flow to clean out core element’s surface dust produced by powder metallurgy. Feature . Disc uses high-precision stepping motor and D. D motor together to ensure the reliability of angle segmentation. . Coating area and stamping area are fixed by vacuum-absorption to increase the stability of coating and marking. . UV curing module utilizes new UV light, small size, high power, good curing effect.. . It is operated by HMI, easy to learn and easy to use. Specification Model No.YLSCT-02B2 Power Supply1φ AC 220 V , 50 / 60 Hz <25A Dimension ( L x W x H )119*112.5*183 cm UV ink and UV paste(Wave length: 380 ~ 420 nm Ink type) (Wave length of 365 nm could be selected also ) Application Range4x4x1.1 i 4x4x2.0 x 4x4x28 ( Depend on customer's requirement) CapacityMax. 70 pcs / min Weight450 kg Application Automatic coating and marking equipment, YLSCT-02B2, is suitable for the components, which need to separate polarity, are fragile and are not easy for multi-feeding.
