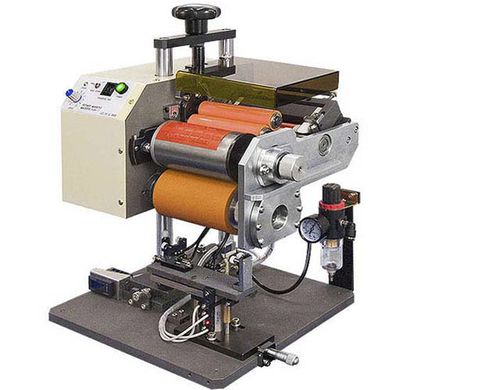

Electronic component pad printing machine RLMK-1C

rotary

Transferrable Marking Machine RLMK-1C Automated Rolling Marking Machine RLMK-1C, (Model: Rolling Marking Machine), is the extension model of RLMK-1, the whole structure could also be upgraded synchronously besides increasing the marking size, the rolling marling bearing sets the slope angle adjusting mechanism of taper objects. Single-Color Automated Rolling Marking Machine RLMK-1C,which could be effectively adapted to the taper marking of syringes, hand-held microphone. Feature . Utilizing new generation transferring ink operation system, which upgrades the ease of operation. . The slope angle design of rolling marking bearing expands the application range of product. . The operation is fast and easy (comparing to screen Printer). Specification Model No.RLMK-1C Power100 -240V AC, 47-63 Hz Dimension ( L x W x H )350 x 400 x 520 mm Oil InkUV Ink, Heat-drying Ink The minimal marking sizeHeight 0.7 mm Application Rangeφ12-φ60 mm, Width= 75-125 mm Production Speed20-30 cycles / m (It doesn't include Upload and Download ) The weight of platform35 kg ^ Air pressure should keep under 4.5 kg / cm2 Application Automatic transferable machine RLMK-1C, its transferable marking seat set up an inclination adjustment mechanism of taper objects, which can effectively adapt to taper printing, such as syringes, handheld microphone printing.
