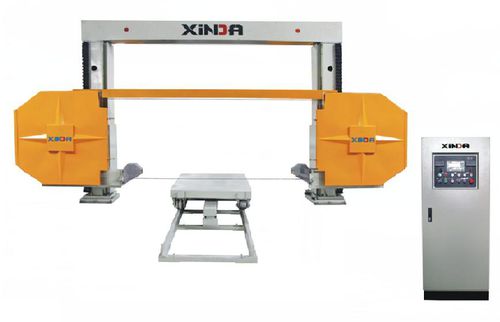

Diamond wire saw KXJ1500Ahorizontalfor stone and concreteautomatic
Add to favorites
Compare this product
Characteristics
- Technology
- diamond wire
- Orientation
- horizontal
- Treated material
- for stone and concrete
- Operational mode
- automatic
- Other characteristics
- electric, trimming
Description
Diameter of Wire: Ø8-Ø11mm
Length of Wire: 17300mm
Speed of Wire: 0-40m/s
Guide wheel diameter：Φ300mm
Worktable size（cannot rotate）：1360mm×2000mm
Worktable load capacity：20tons
Range of Cutter Movement：1600mm
Maximum cutting size（L×W×H）：3500×2000×1500mm
Production efficiency：1-2㎡/h（marble） 0.5-2㎡/h（granite）
Overall Dimensions：8200mm×5600mm×3800mm
Main motor：11kw （with inverter）
Water consumption：4m3/hour
Worktable Frequency conversion motor power：3kw
Lifting Frequency conversion motor power：3kw
Total Weight: 7T
Total Power: 19.94kw
Voltage：380V 50hz
