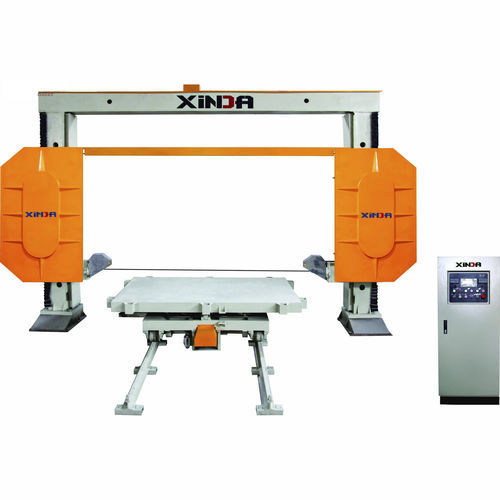

Diamond wire saw KXJ2500C horizontalfor stone and concreteautomatic
Add to favorites
Compare this product
Characteristics
- Technology
- diamond wire
- Orientation
- horizontal
- Treated material
- for stone and concrete
- Operational mode
- automatic
- Other characteristics
- electric, trimming
Description
Diameter of Wire: φ8mm-φ11mm
Length of Wire: 21250mm
Speed of Wire: 0-40m/s
Guide wheel diameter：Φ300mm
Rotating worktable size（360°rotating with asynchronous motor）：3000mm×2000mm
Worktable load capacity：40tons
Range of Cutter Movement：2200mm
Maximum cutting size（L×W×H）：3600mm×2000mm×2100mm
Productivity：1-2㎡/h（marble） 0.5-2㎡/h（granite）
Dimensions：9800mm×6250mm×5800mm
Main motor：15kw （with inverter）
Water consumption：4m3/hour
Worktable Frequency conversion motor power：3kw
Lifting Frequency conversion motor power：3kw
Total Weight: 12t
Total Power: 26.94kw
Voltage：380V 50hz
