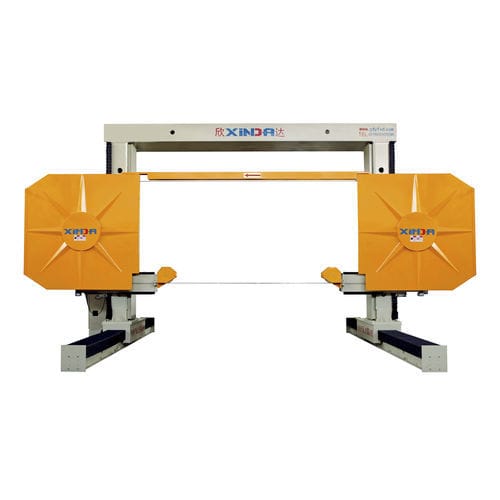

Diamond wire saw KXJ-LY-2200

horizontalfor stone and concreteautomatic

Diameter of Wire：Φ8－Φ11 Length of Wire：21350mm Speed of Wire：0－40m/s Worktable Size：NO Range of Cutter Movement：2200mm Max Cutting Size(L×W×H)： 3600×3800×2100mm Production Efficiency：1-2㎡/h（marble） 0.5-2㎡/h（granite） Main Motor Power：15KW Water Consumption： 3m3/hour Overall Dimension：9800×6100×5800mm Total Power：23.94KW Voltage/Frequency（V/HZ）：380V/50HZ Total Weight： 13.7T the machine adopts high precision rack and gear meshing transmission to drive the left and right upright column to move synchronously instead of the traditional wire saw whose worktable is driven by screw rod. The advantage is that it overcomes the difficulties of large deformation due to the horizontal setting of the screw rod and the difficulty of processing due to the screw rod is too long， thus greatly improve the product processing accuracy and the service life of the machine, and saving the production cost of users. Meanwhile, it can extend the processing length. This advantage is unmatched by the screw driven worktable structure. This transmission feature is to fill the domestic and abroad gap of the wire saw product.The product has been authorized by the national Patent Office. The machine is used for cutting slabs and trimming stone.
