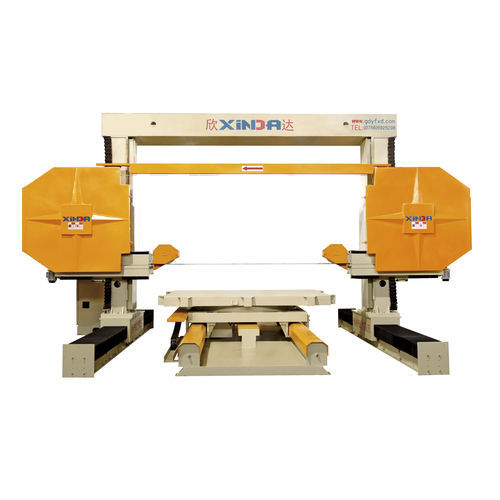

Diamond wire saw KXJ-LTY-1500horizontalfor stone and concreteautomatic
Add to favorites
Compare this product
Characteristics
- Technology
- diamond wire
- Orientation
- horizontal
- Treated material
- for stone and concrete
- Operational mode
- automatic
- Other characteristics
- precision, electric, gantry type, trimming, with moving table
Description
Diameter of Wire：Φ8－Φ11
Length of Wire：17300mm
Speed of Wire：0－40m/s
Worktable Size： 3000×2000mm
Worktable can rotate angle： 360°（driven by Servo motor）
Worktable Load Capacity： 50T
Range of Cutter Movement：1600mm
Max Cutting Size(L×W×H)：3500×2000×1500mm
Production Efficiency： 1-2㎡/h（marble） 0.5-2㎡/h（granite）
Main Motor Power ：11KW
Water Consumption：3m3/hour
Overall Dimension ：8200×6800×4300mm
Total Power ：22.64KW
Voltage/Frequency（V/HZ）：380V/50HZ
Total Weight ：16.1T
The X-axis movement of the machine can be realized: it can adopts the precision rack and gear meshing transmission to drive the left and right columns to move synchronously, and the worktable move with a screw rod through the nut.
The machine is used for cutting slabs and trimming stone.
