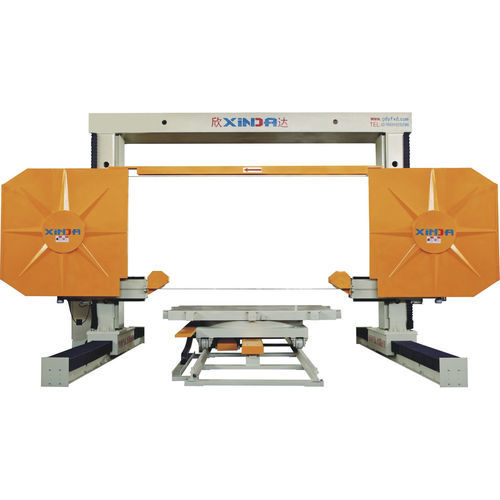

Diamond wire saw KXJ-LTY-2200

horizontalfor stone and concreteautomatic

Diameter of Wire：Φ8－Φ11 Length of Wire：21350mm Speed of Wire：0－40m/s Worktable Size： 3000×2000mm Worktable can rotate angle： 360°（driven by Servo motor） Worktable Load Capacity： 50T Range of Cutter Movement：2200mm Max Cutting Size(L×W×H)：3600×2000×2100mm Production Efficiency： 1-2㎡/h（marble） 0.5-2㎡/h（granite） Main Motor Power ：15KW Water Consumption：3m3/hour Overall Dimension ：9800×6800×5800mm Total Power ：26.64KW Voltage/Frequency（V/HZ）：380V/50HZ Total Weight ：17.7T The X-axis movement of the machine can be realized: it can adopts the precision rack and gear meshing transmission to drive the left and right columns to move synchronously, and the worktable move with a screw rod through the nut. The machine is used for cutting slabs and trimming stone.
