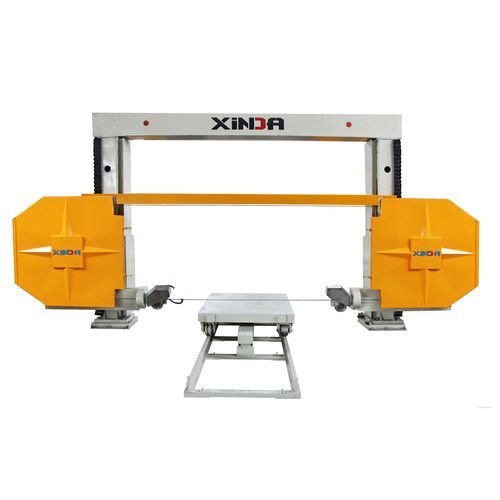

Diamond wire saw SHXJ1500Ahorizontalfor marblefor granite
Add to favorites
Compare this product
Characteristics
- Technology
- diamond wire
- Orientation
- horizontal
- Treated material
- for marble, for granite
- Applications
- for profiles
- Operational mode
- automatic, CNC
- Other characteristics
- electric, large
Description
Diameter of Wire: φ8mm-φ11mm
Length of Wire: 17300mm
Speed of Wire: 0-40m/s
Guide wheel diameter：Φ200mm
Worktable size（cannot rotate）：1360mm×2000mm
Worktable load capacity：20tons
Range of Cutter Movement：1600mm
Maximum cutting size（L×W×H）：3500×2000×1500mm
Productivity：1-2㎡/h（marble） 0.5-2㎡/h（granite）
Dimensions：8200mm×5600mm×3800mm
Main motor：11kw （with inverter）
Water consumption：3m3/hour
Worktable servo motor power：2.35kw
Lifting servo motor power：2.35kw
Total Weight: 7t
Total Power: 19.38kw
Voltage：380V 50hz
The machine is mainly used for processing the profile of marble and granite. Such as：processing the arc slabs of different specifications, solid columns, hollow columns, large stone lines and English letter, etc.
