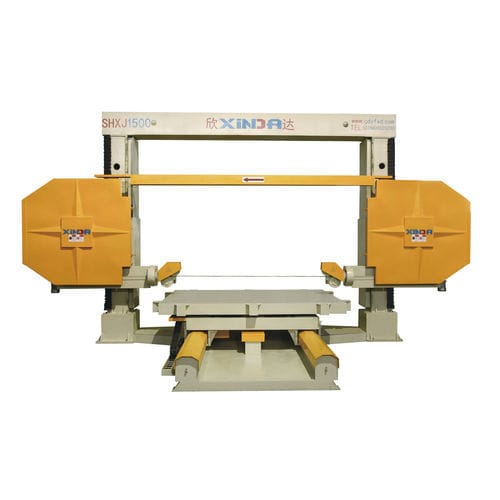

Diamond wire saw SHXJ1500(II)
for marblefor granitefor profiles

Diamond wire saw - SHXJ1500(II) - Yunfu City Xinda Machinery Co., Ltd. - for marble / for granite / for profiles
Diamond wire saw - SHXJ1500(II) - Yunfu City Xinda Machinery Co., Ltd. - for marble / for granite / for profiles
Add to favorites
Compare this product


Characteristics

Technology
diamond wire
Treated material
for marble, for granite
Applications
for profiles
Operational mode
CNC
Other characteristics
5-axis

Description

Diameter of Wire: φ8mm-φ11mm Length of Wire: 16500mm Speed of Wire: 0-40m/s Guide wheel diameter:Φ200mm Rotating table size:3000mm×2000mm Worktable load capacity:50tons Range of Cutter Movement:1600mm Maximum cutting size(L×W×H):3000×2000×1500mm Productivity:1-3㎡/h(marble) 0.5-2㎡/h(granite) Dimensions:7500mm×5600mm×3800mm Main motor:11kw (with inverter) Water consumption:3m3/hour Worktable servo motor power:2.35kw Lifting servo motor power:2.35kw Total Weight: 10t Total Power: 21.79kw Voltage:380V 50hz The machine is mainly used for processing the profile of marble and granite. it not only can process the arc slabs of different specifications, solid columns, hollow columns, large stone lines and English letter but also can process stone into polygon and the figure of Buddha、special-shaped square column and so on for special-shaped stone.
