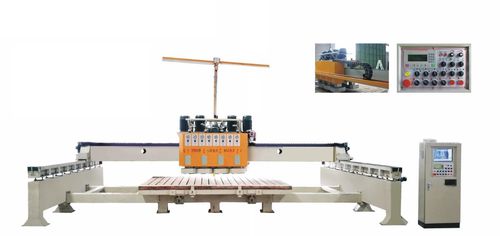

Marble polishing machine QMJ-470 (I)

tileautomatic8-axis

Polish efficiency 15-25m2/h Worktable Size 3200×2200mm Max processing size 3200×2200×80（thickness）mm Worktable Tile Angle 0-83° Main Motor Power 4PCS×11KW Water Consumption 4m3/hour Overall Dimension 8000×5500×2600mm Total Power 52.5KW Total Weight 9.5T The machine is mainly used for polishing marble slabs. there are two options for the structure of this machine：the integrated type and the separated type. It adopts PLC+ Visual control system technology, which automatically tracks and finishes the whole process of polishing marble slabs through image detection. This machine has the following advantages：high flatness, high gloss and high efficiency.
