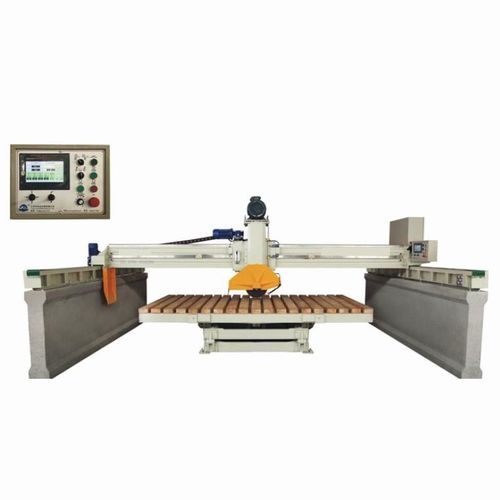

Infrared laser cutting machine XDQC-400（Ⅱ)

for marblefor granitesheet

Diameter of Blade: φ350mm-φ400mm Size of Worktable: 3200mm×2000mm Maximum Transverse and longitudinal cutting Distance: 3200mm Maximum travel of cutter lifting : 200mm Tilt Angle of worktable：0-83° Cutting Thickness: 0-90mm Power of Main Motor: 15kw Water consumption：4m3/hour Total Power: 19.8kw This machine adopts infrared for tool setting and adopts the magnetic grid ruler to measure the goal value , the accuracy of size of processing slabs is higher than adopted encoder. also use hydraulic to transmit. it is controlled by the mini- computer(PLC system). this machine is mainly used for cutting and processing marble slabs, granite slabs, artificial stone slabs, quartz stone slabs.
