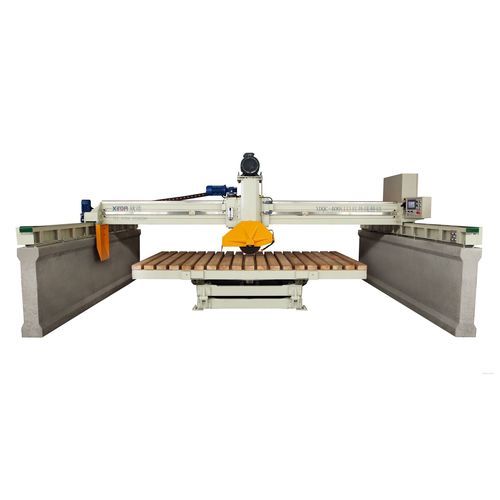

Infrared laser cutting machine XDQC-600（Ⅱ）for marblefor granitesheet
Add to favorites
Compare this product
Characteristics
- Technology
- infrared laser
- Material
- for marble, for granite
- Product handled
- sheet, blocks
- Control type
- PLC-controlled
- Applications
- for industrial applications
- Configuration
- bridge
- Other characteristics
- automatic
- Overall length
6,000 mm
(236 in)- Overall width
5,000 mm
(197 in)- Height
3,100 mm
(122 in)- Weight
5 t
(5.51 us ton)
Description
Diameter of Blade: φ400mm-φ600mm
Size of Worktable: 3200mm×2000mm
Maximum Transverse and longitudinal cutting Distance: 3200mm
Maximum travel of cutter lifting : 300mm
Tilt Angle of worktable：0-83°
Cutting Thickness: 0-150mm
Power of Main Motor: 15kw
Water consumption：4m3/hour
Total Power: 19.8kw
This machine adopts infrared for tool setting and adopts the magnetic grid ruler to measure the goal value , the accuracy of size of processing slabs is higher than adopted encoder. also use hydraulic to transmit. it is controlled by the mini- computer(PLC system). this machine is mainly used for cutting and processing marble slabs, granite slabs, artificial stone slabs, quartz stone slabs.
