High-speed door

fold-upaluminumfabric

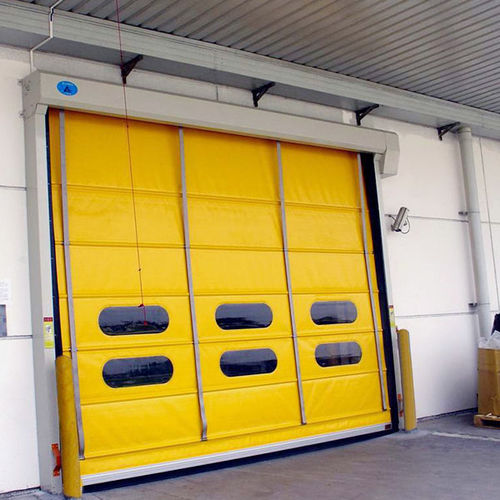

Stacking Rapid Door Stacking rapid door fit for big door opening size （more than 6m*6m）and also have the requirement of the door opening and close speed. This door have great wind resistence. Product Description Max dimension: - 6000mm*6000mm≤wide*high≤8000mm*7000mm Max opening Speed: 1.0m/s Max closing speed: 0.7m/s Wind resistance: Beaufort scale 12 (35m/s) Power supply: 1-phase 220±10%V,50/60HZ,or3-phase 380V±10%V,50/60HZ Protection level of electric: - IP55 Available colors of fabric: - Yellow, Blue, Red, Grey, White Wind resisting structure： There are several high-strength aluminum rod were used to connect PVC fabric as a whole. When faced with big wind, such rods will offer big support. Special belt structure is adopted to lift door up and down by revolving roller.
