Industrial door
foldingsteelglass

industrial door
industrial door
industrial door
industrial door
industrial door
industrial door
industrial door
Add to favorites
Compare this product


Characteristics

Type
folding
Material
steel, glass
Other characteristics
wind-proof, custom
Applications
industrial, indoor, hangar, garage, for shops
Width

25 m
(82'00" )

Height

9 m
(29'06" )

Description

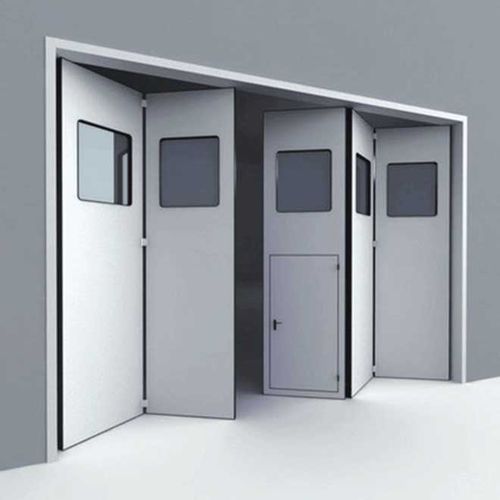

Industrial Folding Door Industrial folding door is often used when the top of the door and the space on both sides are insufficient. It applicated to not only small workshops , warehouses, garages, etc., but also to the ships, industrial enterprises, ports, and large-scale scientific research bases. Product Description Max dimension: W25m* H9m Power supply: 220V/380V,50/60HZ Wind-resistence - 10-12级:(24-38m/s) color: Standard,white blue can be customized 1.Main structure:The folding door can be manually opened, and the door structure is simple and flexible. Excellent wind resistance and durability. Attention: Running track: (1)Foldable open to both sides of the door. (2)It can be turned sideways to the side wall. (such as side turn hangar door, etc.) (3)Applicable to the opening: there is not enough space on the top and sides of the door opening 2. Electric type: (1)Small folding door with a width of <5m (2)Large folding door (top chain drive or wire rope drive) 3.Two ways of bearing 4.Panel material:Steel frame with buckle edge (high sealing) special edging door frame, 50mm, 75mm, 10mm foam door panel, polyurethane foam door panel or rock wool door panel, steel plate thickness 0.5mm, the middle of the door panel according to the specific size Increase the resistance to wind. 5.Lighting window:can choose tempered glass, sunlight board, PC endurance board, laminated glass and its transparent materials
